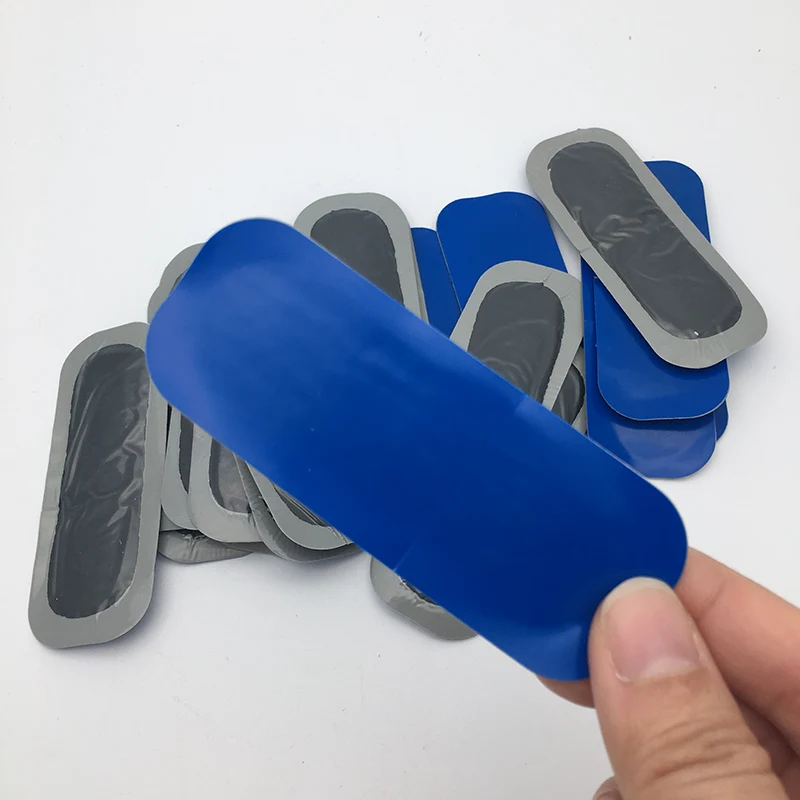

TLT9535 patch
95 × 35 × 4 mm
Tire sidewall attachment; use a tire-approved installation process. [1]
RFID Tags · RFIDAK
RFID Tire Patch Tags — TLT9535
TLT9535 is a 95 × 35 × 4 mm passive UHF patch-format tire tag. It is used for tire identification with a matched reader and application record; the patch format must not be confused with a spring transponder embedded during tire manufacture.
Updated September 24, 2026
- Reference model
- TLT9535
- Size
- 95 × 35 × 4 mm
- Construction
- Vulcanized plastic patch reference
Technical reference
Product specifications
Model-specific data and source scope are shown together.
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
Appearance & construction
Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Patch or embedded spring?
A patch attaches to a suitable tire surface; an embedded spring transponder is integrated during manufacturing. The two constructions need different attachment and process qualification.
Identification, not tire-pressure sensing
This passive RFID component supplies an identity. Pressure and temperature telemetry require sensor hardware and a compatible system; neither follows from an EPC identifier.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- TLT9535 patch reference ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
