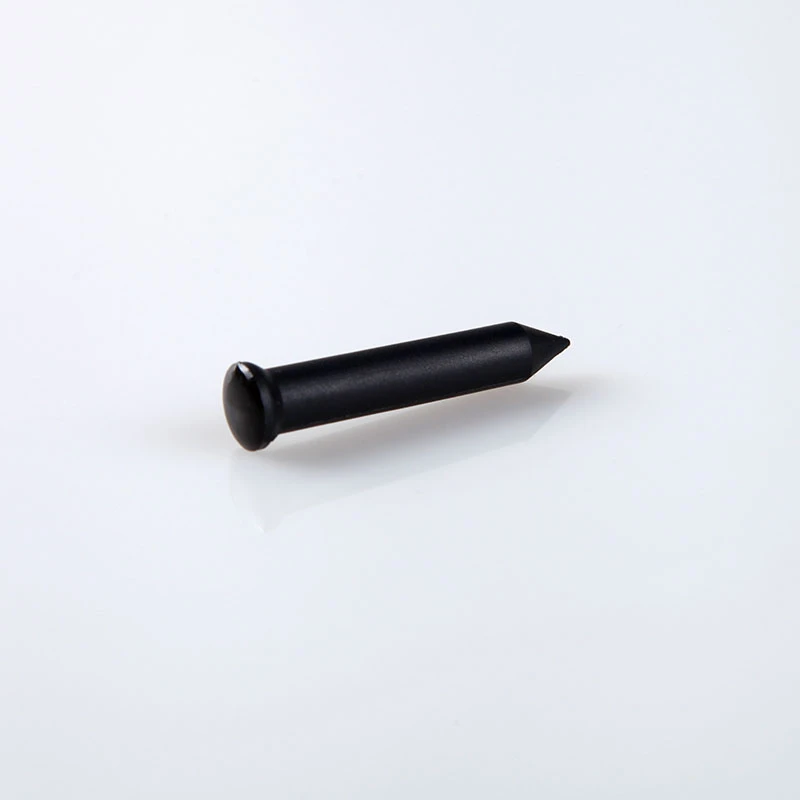

TNT3608
Source notation: Φ8 × 36 × 6 mm
LF / HF reference. The last dimension is not explicitly defined in the source drawing. [1]
RFID Tags · RFIDAK
RFID Nail Tags — LF, HF & UHF Models
RFID nail tags embed a rigid ABS transponder in wood or another suitable non-metal item. TNT3608 is the smaller LF/HF reference; TNT4012 is the larger UHF reference. Their dimensions and protocols should be selected separately.
Updated September 24, 2026
- Material
- ABS
- TNT3608 frequency
- 125 kHz LF or 13.56 MHz HF
- TNT4012 frequency
- 860–960 MHz UHF
Technical reference
Product specifications
Model-specific data and source scope are shown together.
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
TNT4012
Source notation: Φ12 × 40 × 10 mm
UHF reference. Check the head, shaft and insertion drawing before tooling. [1]
Appearance & construction
Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
For timber identification
The tag carries an identifier that your inventory system links with species, treatment, batch or movement records. The chip does not measure tree health or moisture by itself.
Installation allowance matters
Match pilot-hole diameter, depth and material hardness to the selected drawing. Keep impact away from the chip enclosure; a generic nail-tag name is not evidence that it can be driven into every wood without preparation.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- Nail-tag model table ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
